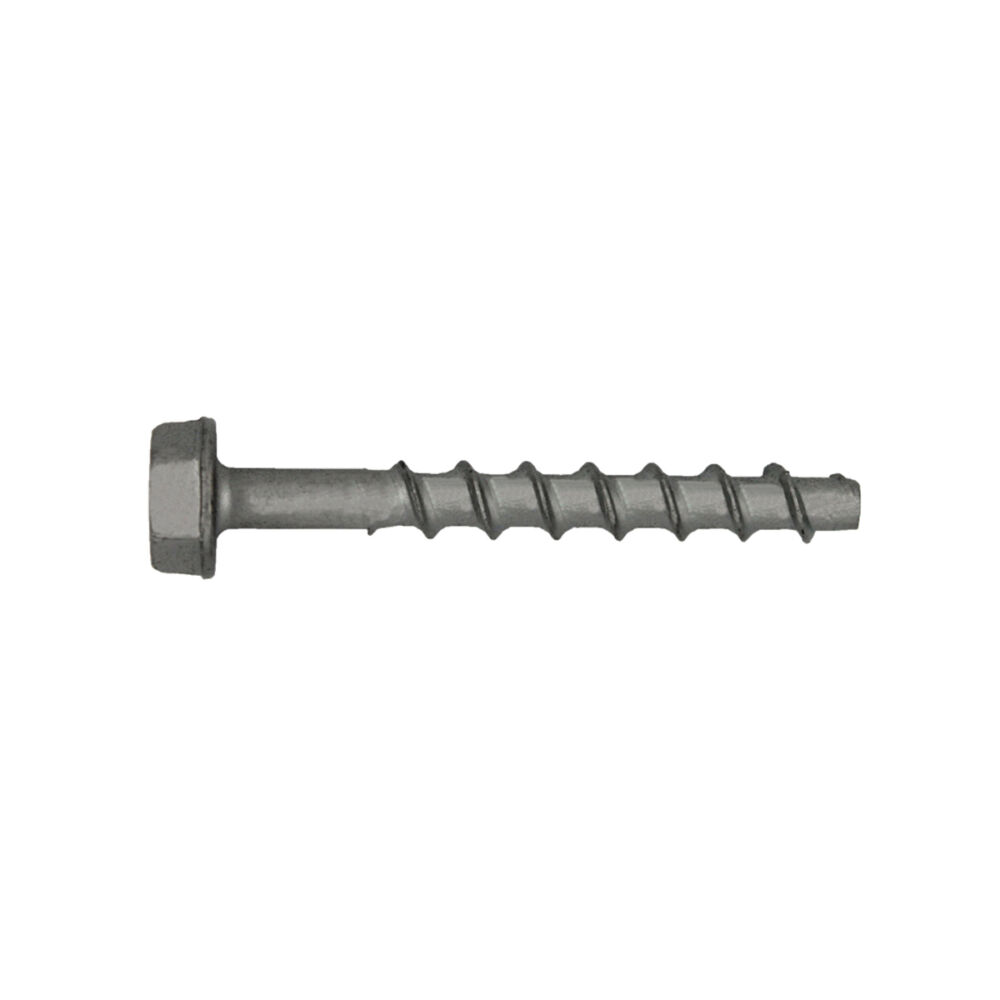

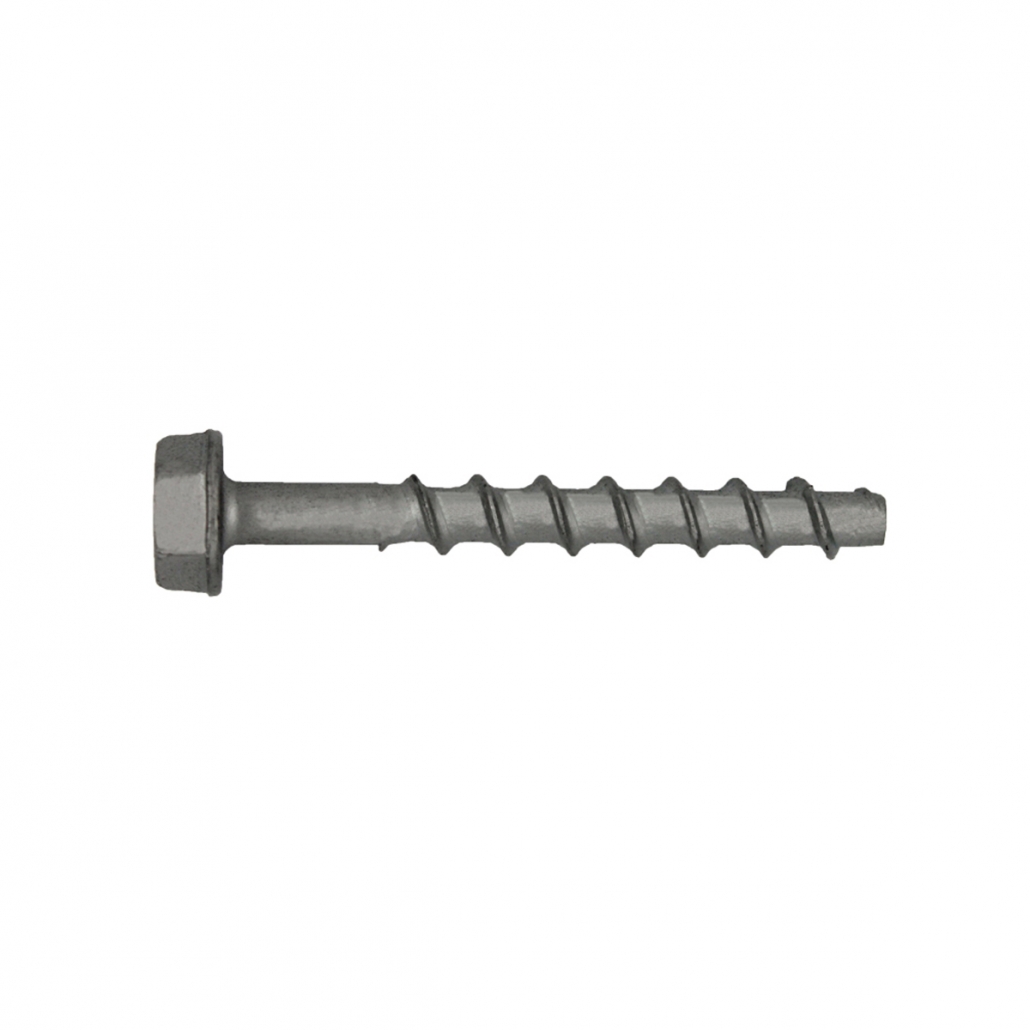

MKT CONCRETE SCREW BOLT BSZ-SU
Steel Zinc Plated – Hex Flange Head
C1 and C2 Seismic Approval
The BSZ-SU concrete screw bolt, cuts a thread in the concrete when being screwed in, which enables anchoring into the concrete close to the edge through expansion-free setting of the anchor.
| Description | Reference Number | Quantity per Package |
|---|---|---|
| BSZ-SU 6×40 | 58121001 | 100 |
| BSZ-SU 6×50 | 58121501 | 100 |
| BSZ-SU 6×80 | 58123001 | 100 |
| BSZ-SU 6×100 | 58124001 | 100 |
| BSZ-SU 8×60 | 58131501 | 50 |
| BSZ-SU 8×80 | 58132501 | 50 |
| BSZ-SU 8×100 | 58133501 | 50 |
| BSZ-SU 8×120 | 58134501 | 50 |
| BSZ-SU 10×60 | 58141001 | 50 |
| BSZ-SU 10×80 | 58142001 | 50 |
| BSZ-SU 10×100 | 58143001 | 50 |
| BSZ-SU 10×120 | 58144001 | 50 |
| BSZ-SU 10×140 | 58145001 | 50 |
| BSZ-SU 10×160 | 58146001 | 50 |
| BSZ-SU 12×80 | 58151001 | 25 |
| BSZ-SU 12×110 | 58152501 | 25 |
| BSZ-SU 12×130 | 58153501 | 25 |
| BSZ-SU 12×150 | 58154501 | 25 |
Technical Data
For further information about this product, please click below to download a PDF.
